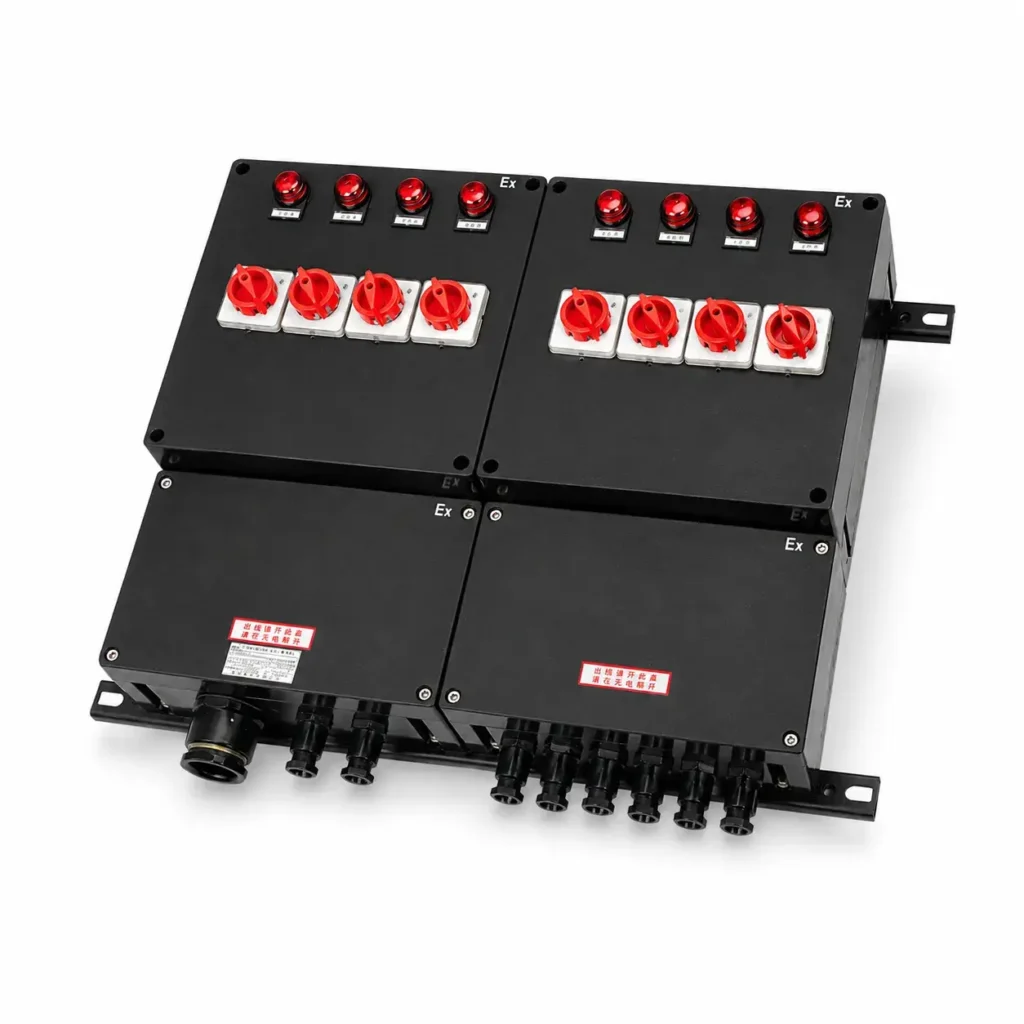

BXM(D)8050 Explosion-Proof & Corrosion-Resistant Distribution Box (IIC, DIP)
- Gas: Exed IIC T6
- Dust: DIP A20 TA, T6
- Protection: IP65
- Corrosion: WF2
Product Overview
The BXM(D)8050 Explosion-Proof Distribution Box is designed for safe power distribution and circuit control in hazardous environments containing explosive gases or combustible dust.
The enclosure adopts a fiberglass reinforced polyester structure with excellent corrosion resistance, impact resistance, and sealing performance, making it suitable for harsh industrial and offshore applications.
The modular design supports multiple branch circuits and optional main switch configuration for flexible hazardous area electrical systems.
Application
- Oil & Gas Refineries
- Chemical Processing Plants
- Pharmaceutical Facilities
- Offshore Platforms & Oil Tankers
- Military Industry Projects
- Dust Hazardous Areas
Technical Parameters
| Parameter | Specification | |
|---|---|---|
| Explosion Protection | Exed IIC T6 | |
| Dust Protection | DIP A20 TA, T6 | |
| Rated Voltage | 220V / 380V | |
| Main Circuit Current | ≤225A | |
| Branch Circuit Current | 1–63A | |
| Protection Degree | IP65 | |
| Corrosion Resistance | WF2 | |
| Cable Entry | G3/4” | |
| Cable Diameter | Φ13–18 mm | |
| Cable Direction | Bottom In / Bottom Out | |
| Installation | Wall Mounted |
Features
- Fiberglass reinforced polyester enclosure
- Excellent corrosion and impact resistance
- Fully enclosed operating mechanism for improved safety
- Optional padlock design to prevent misoperation
- Special explosion-proof breakers installed internally
- Modular multi-circuit combination structure
- Main switch current up to 225A
- Reliable operation in harsh industrial environments
Outline & Mounting
Model Designation
Product Selection Table
| Type | Main Circuit | Branch Circuit |
|---|---|---|
| Lighting Distribution | ≤225A | 1–63A |
| Power Distribution | ≤225A | 1–63A |
