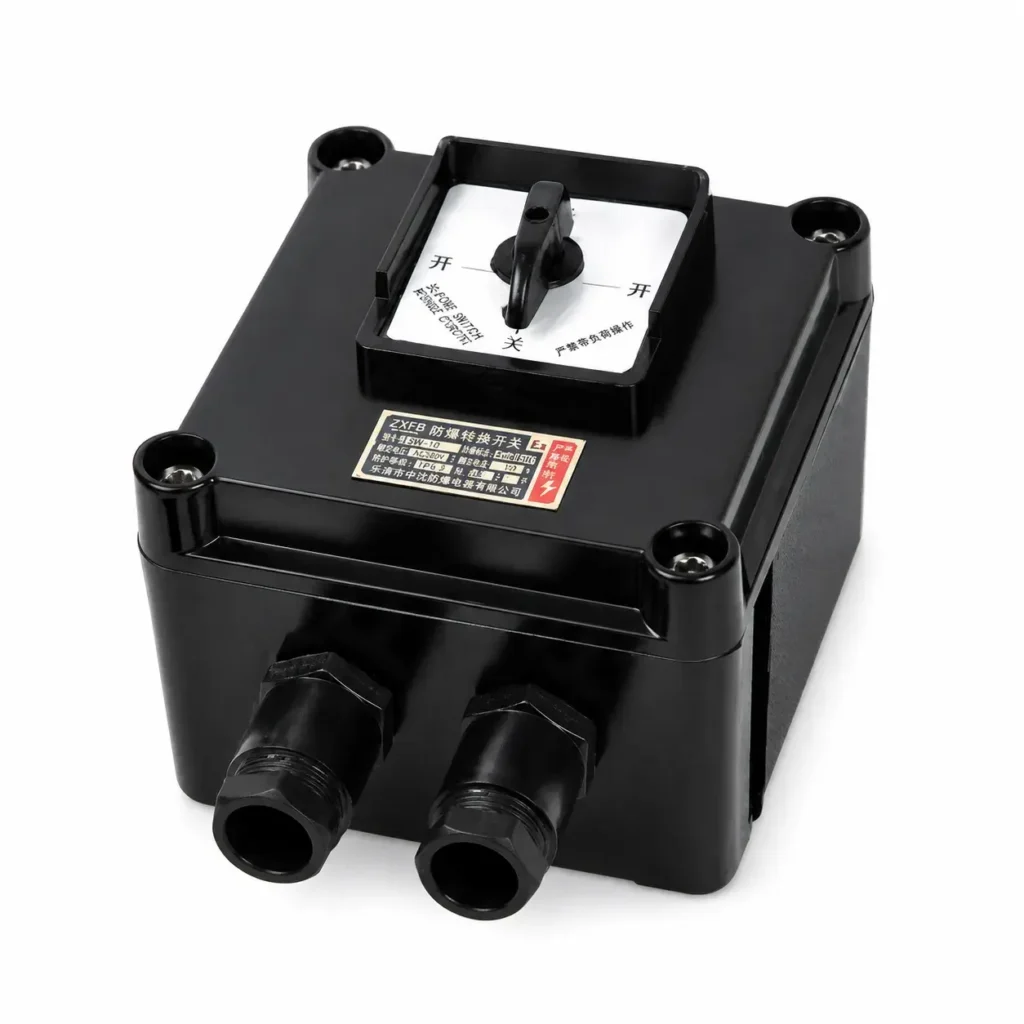

BZZ8050 Explosion-Proof & Corrosion-Resistant Changeover Switch (IIC, DIP)
- Gas: Ex de IIC T6 Gb
- Dust: DIP A21 TA, T6
- Protection: IP65
- Corrosion: WF2
Product Overview
The BZZ8050 Explosion-Proof Changeover Switch is designed for safe switching and power isolation in hazardous environments with explosive gas or combustible dust.
The enclosure adopts a corrosion-resistant fiberglass reinforced polyester structure with excellent sealing performance, suitable for harsh industrial environments such as chemical plants, offshore platforms, refineries, and pharmaceutical facilities.
It is widely used for circuit switching, power isolation, and equipment control in hazardous areas.
Application
- Oil & Gas Refineries
- Chemical Processing Plants
- Pharmaceutical Workshops
- Offshore Platforms & Oil Tankers
- Dust Hazardous Areas
- Marine Corrosive Environments
Technical Parameters
| Model | BZZ8050-20 | BZZ8050-32 | BZZ8050-63 |
|---|---|---|---|
| Rated Current | 20A | 32A | 63A |
| Explosion Protection | Ex de IIC T6 Gb | Ex de IIC T6 Gb | Ex de IIC T6 Gb |
| Dust Protection | DIP A21 TA, T6 | DIP A21 TA, T6 | DIP A21 TA, T6 |
| Rated Voltage | 220V / 380V | 220V / 380V | 220V / 380V |
| Protection Degree | IP65 | IP65 | IP65 |
| Corrosion Resistance | WF2 | WF2 | WF2 |
| Cable Entry | G3/4” | G1” | G1 1/2” |
| Cable Diameter | Φ12–18 mm | Φ18–25 mm | Φ22–32 mm |
| Cable Entries | 2 | 2 | 2 |
| Cable Direction | Bottom In / Bottom Out | Bottom In / Bottom Out | Bottom In / Bottom Out |
Features
- Increased safety enclosure structure
- Fiberglass reinforced polyester housing
- Excellent corrosion and impact resistance
- Labyrinth sealing structure for superior waterproof protection
- Integrated foam sealing process for improved dustproof performance
- Internal flameproof switch structure
- Modular pole configuration available
- Suitable for cable wiring systems
Outline & Mounting
- Compact wall-mounted structure
- Approximate enclosure size: 130 × 130 mm
- Bottom cable entry design
- Suitable for industrial wall installation
Model Designation
Product Selection Table
| Model | Pole Type | Current | |
|---|---|---|---|
| BZZ8050-20 | 2P / 3P | 20A | |
| BZZ8050-32 | 2P / 3P | 32A | |
| BZZ8050-63 | 2P / 3P | 63A |
