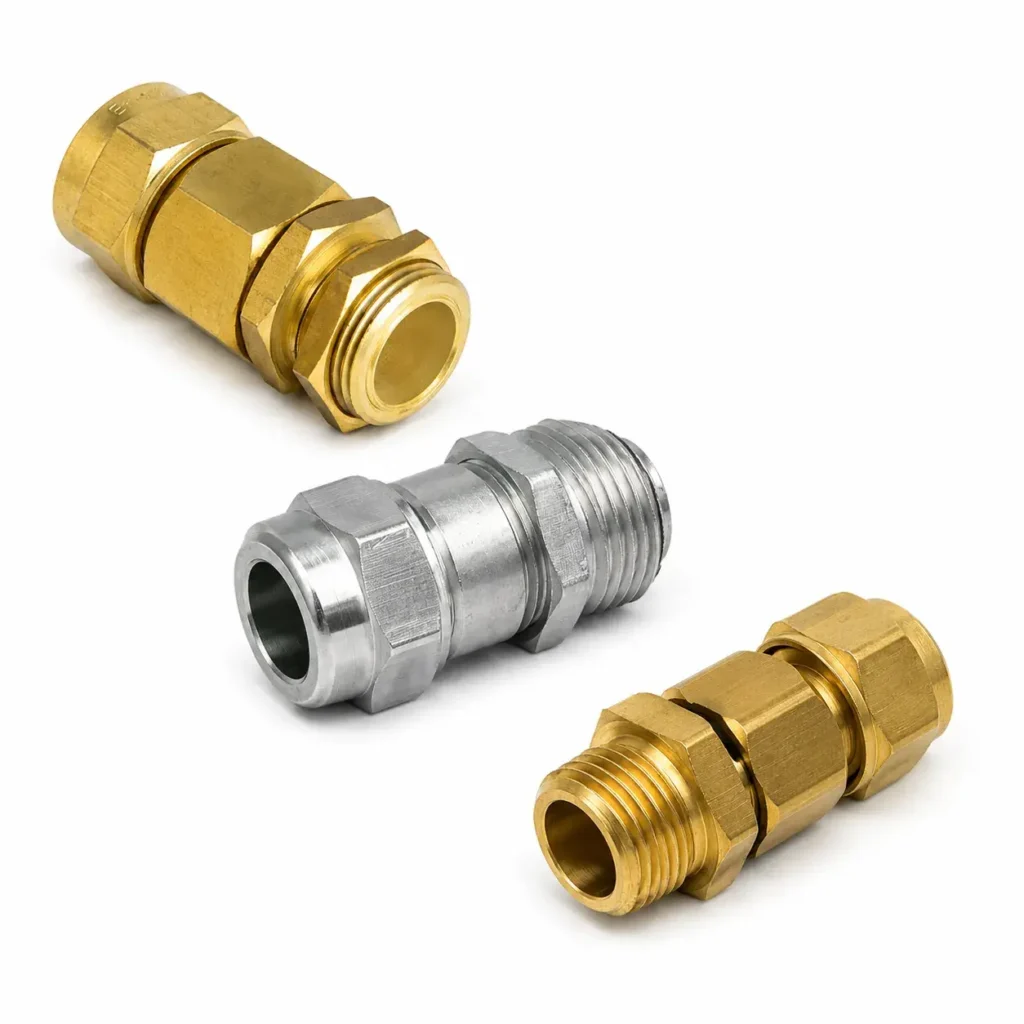

BCL Explosion-Proof Cable Gland (Ex d II)
- Gas: Ex d II
- Protection Degree: IP66
Product Overview
The BCL Explosion-Proof Cable Gland is designed for hazardous areas where safe and reliable cable entry sealing is required. It is suitable for explosive gas environments and provides secure sealing performance for armored and non-armored cables.
Manufactured from high-quality brass or stainless steel, the BCL series offers excellent corrosion resistance, reliable explosion-proof performance, and convenient installation for industrial electrical systems.
Application
- Oil & Gas
- Chemical Plants
- Offshore Platforms
- Marine Engineering
- Pharmaceutical Facilities
- Hazardous Industrial Areas
Technical Parameters
| Model | Length L (mm) | L1 (mm) | Cable Outer Diameter (mm) | Cable Inner Diameter (mm) |
|---|---|---|---|---|
| BCL-G1/2” | 72 | 15 | 13–16 | 3–8 |
| BCL-G3/4” | 74 | 15 | 17–21 | 10–14 |
| BCL-G1” | 84 | 19 | 20–24 | 11–19 |
| BCL-G1 1/4” | 88 | 22 | 25–30 | 17–26 |
| BCL-G1 1/2” | 93 | 22 | 34–38 | 22–32 |
| BCL-G2” | 95 | 30 | 36–43 | 29–44 |
| BCL-G2 1/2” | 103 | 30 | 40–50 | 40–56 |
| BCL-G3” | 126 | 30 | 48–55 | 52–68 |
Features
- Made of brass or optional stainless steel
- Reliable filler sealing structure
- Excellent explosion-proof performance
- High corrosion resistance
- Easy installation and maintenance
- Suitable for Zone 1 and Zone 2 hazardous locations
- Compatible with IIA, IIB, and IIC explosive gas environments
Outline & Mounting
Model Designation
Product Selection Table
| Model | Length L (mm) | L1 (mm) | Cable Outer Diameter (mm) | Cable Inner Diameter (mm) |
|---|---|---|---|---|
| BCL-G1/2” | 72 | 15 | 13–16 | 3–8 |
| BCL-G3/4” | 74 | 15 | 17–21 | 10–14 |
| BCL-G1” | 84 | 19 | 20–24 | 11–19 |
| BCL-G1 1/4” | 88 | 22 | 25–30 | 17–26 |
| BCL-G1 1/2” | 93 | 22 | 34–38 | 22–32 |
| BCL-G2” | 95 | 30 | 36–43 | 29–44 |
| BCL-G2 1/2” | 103 | 30 | 40–50 | 40–56 |
| BCL-G3” | 126 | 30 | 48–55 | 52–68 |
Example:
BCL-G1/2” Ex d II
Indicates:
- Thread Size: G1/2”
- Explosion-Proof Cable Gland
- Explosion-Proof Marking: Ex d II
Custom thread standards such as:
- NPT
- Metric Thread
- BSP Thread
can be customized upon request.
