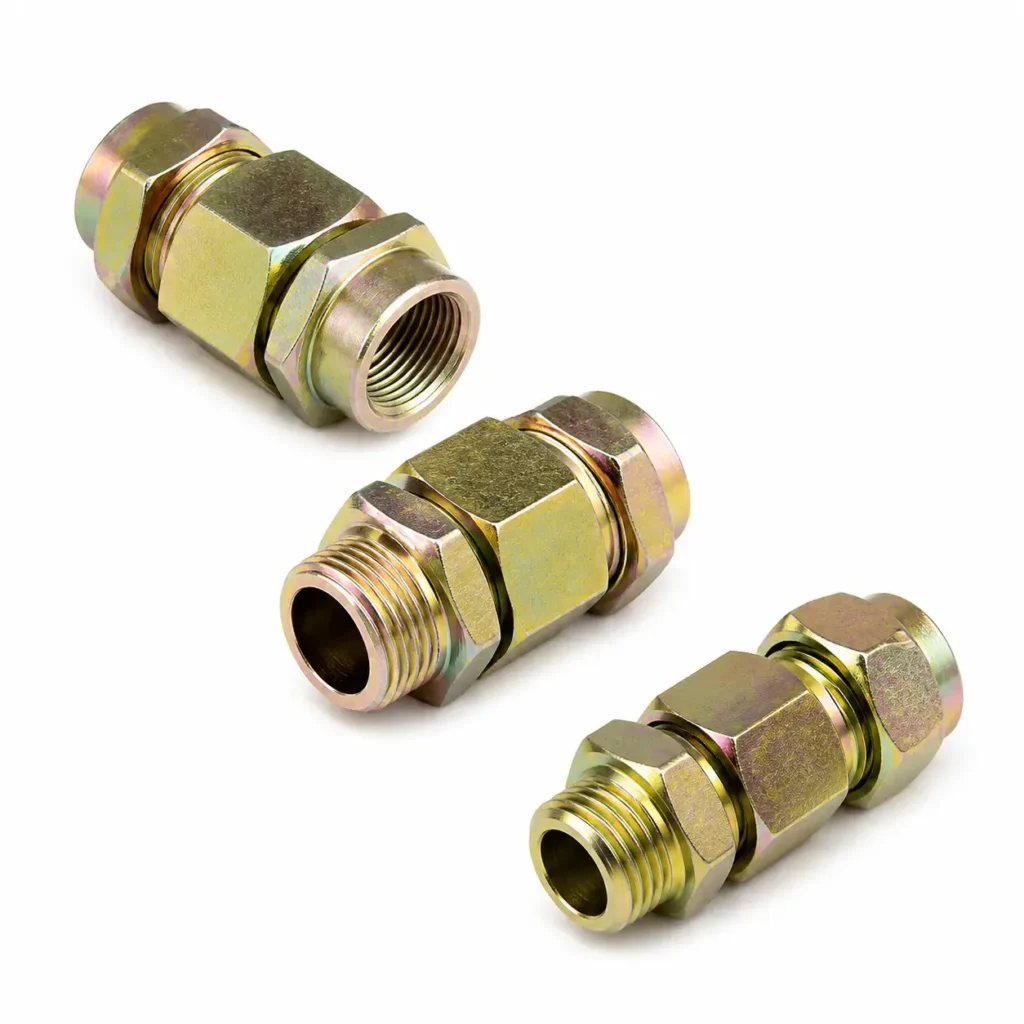

BHJ Explosion-Proof Union Fitting
- Gas: Ex d IIC Gb
- Dust: DIP A20
- Protection Degree: IP55
Product Overview
The BHJ Explosion-Proof Union Fitting is designed for hazardous area conduit systems where convenient disconnection and maintenance are required. It is widely used for steel conduit connections in explosive gas and combustible dust environments.
The product is manufactured from high-quality carbon steel, with stainless steel material available upon request. It provides reliable explosion-proof performance, convenient installation, and excellent mechanical strength for industrial electrical systems.
Application
- Oil & Gas
- Petrochemical Plants
- Offshore Platforms
- Chemical Industry
- Military Facilities
- Hazardous Industrial Areas
Technical Parameters
| Model | Length L (mm) | L1 (mm) | Cable Outer Diameter (mm) | Cable Inner Diameter (mm) |
|---|---|---|---|---|
| BCL-G1/2” | 72 | 15 | 13–16 | 3–8 |
| BCL-G3/4” | 74 | 15 | 17–21 | 10–14 |
| BCL-G1” | 84 | 19 | 20–24 | 11–19 |
| BCL-G1 1/4” | 88 | 22 | 25–30 | 17–26 |
| BCL-G1 1/2” | 93 | 22 | 34–38 | 22–32 |
| BCL-G2” | 95 | 30 | 36–43 | 29–44 |
| BCL-G2 1/2” | 103 | 30 | 40–50 | 40–56 |
| BCL-G3” | 126 | 30 | 48–55 | 52–68 |
Features
- Made of high-quality carbon steel
- Stainless steel version available
- Suitable for conduit connection systems
- Convenient installation and maintenance
- High mechanical strength
- Reliable explosion-proof protection
- Custom thread standards available
- Suitable for harsh industrial environments
Outline & Mounting
Model Designation
Product Selection Table
Example:
BHJ-G3/4”(Female)/G3/4”(Male) Ex d IIC Gb/DIP A20
Indicates:
- Explosion-proof union fitting
- Carbon steel material
- One female and one male G3/4” thread
- Ex d IIC explosion-proof protection
Custom thread types available:
- NPT Thread
- Metric Thread
- BSP Thread
