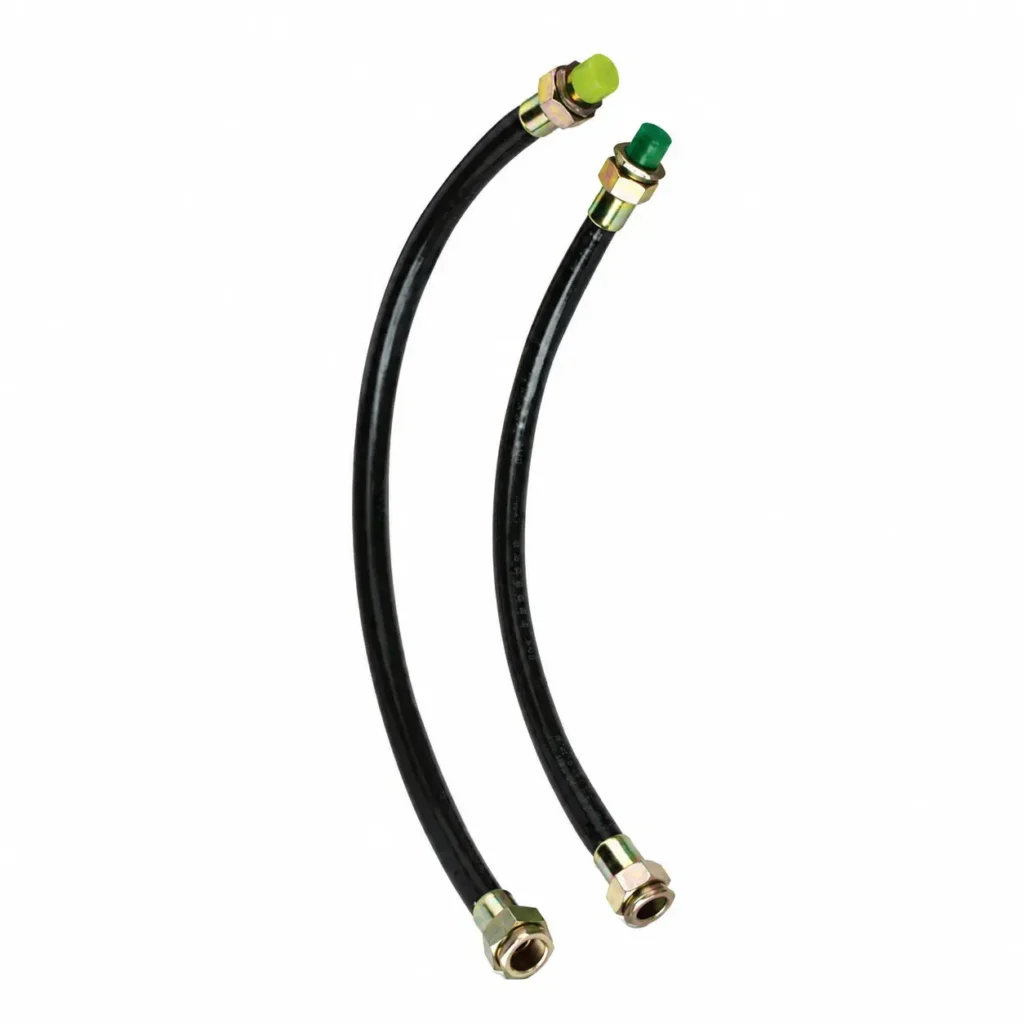

BNG Explosion-Proof Flexible Conduit
- Gas: Ex d IIC Gb / Ex e IIC Gb
- Dust: DIP A20
- Protection Degree: IP65
Product Overview
The BNG Series Explosion-Proof Flexible Conduit is designed for cable entry connection and conduit transition in hazardous industrial environments.It is widely used where rigid steel conduit installation is difficult or where vibration, movement, or equipment displacement requires flexible cable connection.
The conduit features excellent flexibility, corrosion resistance, aging resistance, waterproof performance, and reliable mechanical strength.
Application
- Oil & gas facilities
- Refineries
- Chemical plants
- Offshore platforms
- Hazardous area electrical equipment
- Steel conduit wiring systems
- Locations requiring flexible conduit routing
Technical Parameters
| Parameter | Specification |
|---|---|
| Product Name | Explosion-Proof Flexible Conduit |
| Model | BNG Series |
| Explosion Protection | Ex d IIC Gb / Ex e IIC Gb |
| Dust Protection | DIP A20 |
| Thread Standard | G Thread |
| Optional Thread | NPT / Metric |
| Material | Rubber Sheath / Stainless Steel Braided |
| Length Options | 700mm / 1000mm / Custom |
| Protection Degree | IP65 |
| Applicable Standards | GB3836 / IEC60079 / EN60079 |
Features
- Flame-retardant structure
- Corrosion-resistant materials
- Waterproof and aging-resistant
- Excellent flexibility performance
- Strong and reliable mechanical structure
- Custom thread specification available
- Custom conduit length available
Outline & Mounting
Model Designation
Product Selection Table
| Model | Thread | Length | Minimum Bending Radius |
|---|---|---|---|
| BNG-700×G1/2″ | G1/2″ | 700mm | 80mm |
| BNG-1000×G1/2″ | G1/2″ | 1000mm | 80mm |
| BNG-700×G3/4″ | G3/4″ | 700mm | 110mm |
| BNG-1000×G3/4″ | G3/4″ | 1000mm | 110mm |
| BNG-700×G1″ | G1″ | 700mm | 145mm |
| BNG-1000×G1″ | G1″ | 1000mm | 145mm |
| BNG-700×G1 1/4″ | G1 1/4″ | 700mm | 180mm |
| BNG-1000×G1 1/4″ | G1 1/4″ | 1000mm | 180mm |
| BNG-1000×G1 1/2″ | G1 1/2″ | 1000mm | 210mm |
| BNG-1000×G2″ | G2″ | 1000mm | 250mm |
Please specify:
- Model
- Length
- Thread specification
- Internal or external thread type
- Explosion protection mark
- Rubber sheath or stainless braided type
Example:
BNG-700×G3/4″(Internal)/G3/4″(External) Ex d IIC Gb/DIP A20
