BDZ58 Explosion-Proof Circuit Breaker
-
Explosion protection: Ex d e Ⅱ BT 6 Gb/DIP A21 TA,T6
-
Suitable for :Zone 1 & Zone 2 hazardous areas
-
Enclosure protection: IP54
-
Anti-corrosion Grade: WF1
Product Overview
The BDZ58 Series Explosion-Proof Circuit Breaker is designed for safe power distribution and circuit protection in hazardous environments where flammable gases or dust may be present.
This flameproof circuit breaker integrates overload protection, short-circuit protection, and safe switching functions within a rugged explosion-proof enclosure. It ensures reliable electrical isolation and safety control in industrial applications such as oil & gas facilities, chemical plants, and offshore platforms.
The unit is suitable for Zone 1 and Zone 2 gas hazardous areas and can also be used in dust explosive environments.
Application
-
Oil & gas refineries
-
Chemical and petrochemical plants
-
Offshore platforms and marine environments
-
Mining operations
-
Power distribution systems in hazardous areas
-
Industrial explosion-risk zones
Technical Parameters
| Item | BDZ58-IIB | BDZ58-IIC |
|---|---|---|
| Explosion Marking | Ex d e IIB T6 Gb/DIPA21TA,T | Ex d e IIC T6 Gb/DIPA21TA,T |
| Applicable Zone | Zone 1 & Zone 2 | Zone 1 & Zone 2 |
| Rated Voltage | AC 220V / 380V | AC 220V / 380V |
| Rated Current | 1A – 63A | 1A – 63A |
| Available Current Options | 1A, 3A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A | Same as IIB |
| Number of Poles | 1P, 2P, 3P, 4P | 1P, 2P, 3P, 4P |
| Breaking Capacity | 6kA | 6kA |
| Leakage Protection (Optional) | 30mA | 30mA |
| Protection Grade | IP65 | IP65 |
| Corrosion Protection | WF1 / WF2 | WF1 / WF2 |
| Cable Entry Direction | Top / Bottom | Top / Bottom |
| Cable Entry Size | G3/4, G1, G1 1/4 | G3/4, G1, G1 1/4 |
| Suitable Cable Diameter | Ø8–14mm / Ø12–17mm / Ø15–23mm | Same as IIB |
| Installation Method | Wall Mounted | Wall Mounted |
| Internal Components | MCCB / Mini Circuit Breaker | MCCB / Mini Circuit Breaker |
| Terminal Type | SAK Series | SAK Series |
| Standards | GB3836.1 / GB3836.2 / IEC60079 Series | Same |
Features
- The outer casing is made of ZL102 aluminum alloy die-casting with high-voltage electrostatic powder coating.
- It houses a high-breaking capacity miniature circuit breaker.
- It has overload and short-circuit protection functions, and can be equipped with leakage current protection devices and shunt trip units as required.
- It can be installed in steel conduit or cable wiring.

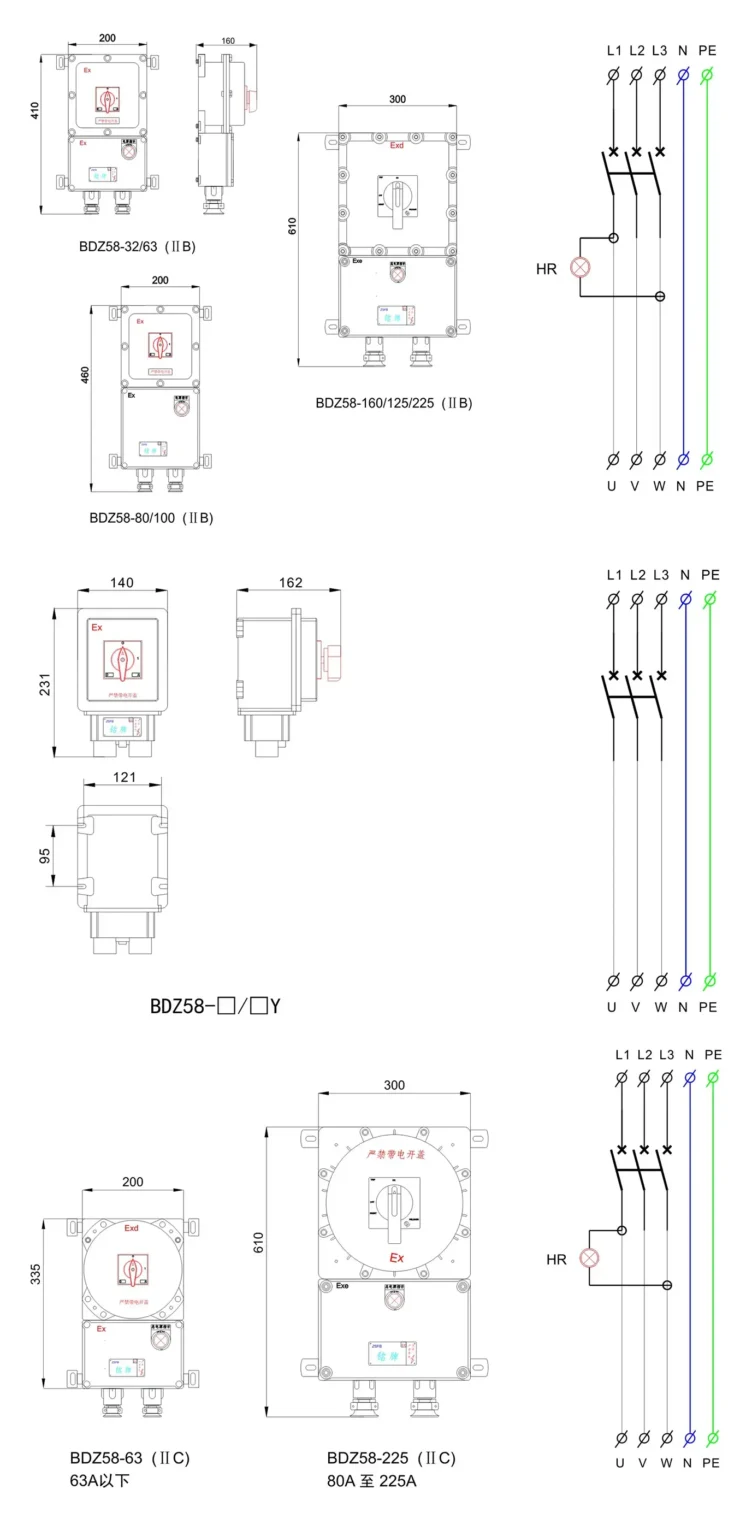

Outline & Mounting

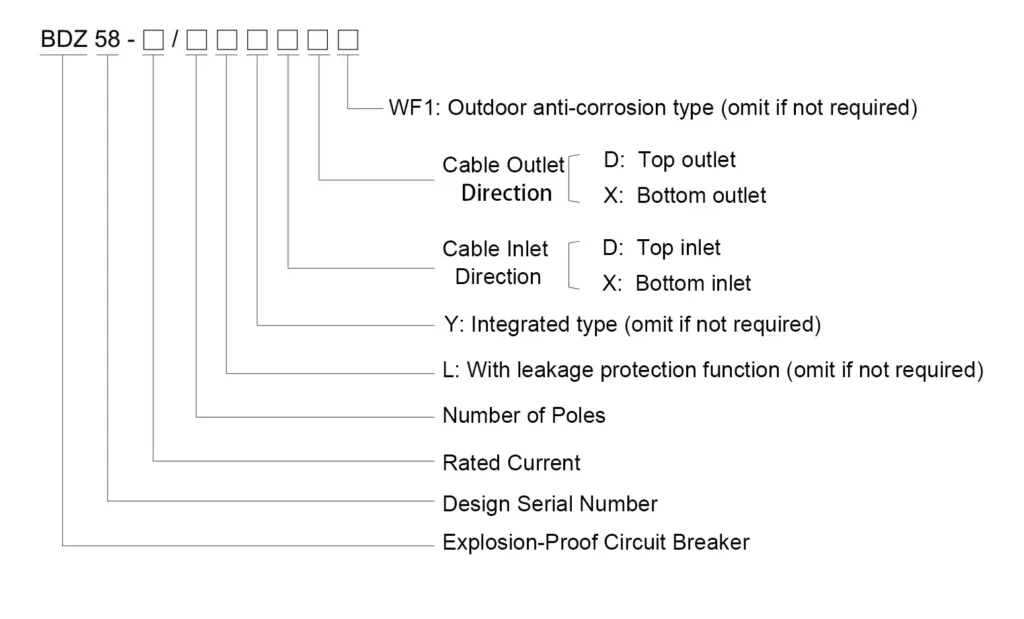

Model Designation
Product Selection Table
| Current (A) | Available Poles | Recommended Cable Entry |
|---|---|---|
| 1 – 20A | 1P / 2P / 3P | G3/4 |
| 25 – 63A | 2P / 3P | G1 |
| 80 – 100A | 3P / 4P | G1 1/4 |
| 160 – 225A | 3P / 4P | G2 |
