LBZ58 Explosion-Proof Control Station (II B / II C)
-
Explosion protection: Ex d e IIC T6 Gb
-
Suitable for: Zone 1 & Zone 2 / Zone 21 & 22
-
Protection grade: IP65
-
Anti-corrosion grade: WF1
Product Overview
The LBZ58 Explosion-Proof Control Station is designed for safe operation and control in hazardous industrial environments where explosive gas or combustible dust may be present.
This heavy-duty flameproof control station integrates push buttons, indicator lights, switches, and instruments into a rugged die-cast aluminum enclosure, ensuring reliable performance in oil & gas, chemical plants, offshore platforms, and other hazardous locations.
It is suitable for Zone 1 & Zone 2 gas environments and Zone 21 & 22 dust environments, covering gas groups IIA, IIB, and IIC.
Application
-
Oil & gas extraction facilities
-
Chemical and petrochemical plants
-
Offshore platforms and tankers
-
Pharmaceutical manufacturing sites
-
Military and heavy industrial hazardous areas
-
Dust explosion environments
Technical Parameters
| Item | Specification |
|---|---|
| Explosion Marking | Ex d e IIC T6 Gb |
| Rated Voltage | AC220V / 380V |
| Rated Current | 10A |
| Protection Grade | IP65 |
| Anti-corrosion Grade | WF1 |
| Enclosure Material | Die-cast Aluminum Alloy |
| Installation Type | Wall Mount / Pole Mount |
| Cable Entry | Customizable |
| Standards | GB3836 Series |
Features
-
Die-cast aluminum housing with electrostatic powder coating
-
Fully flameproof enclosure design for high safety
-
Modular configuration with customizable components
-
High-strength tempered glass observation window
-
International certified terminal blocks for enhanced reliability
-
Suitable for harsh outdoor environments
-
Flexible installation options for different applications

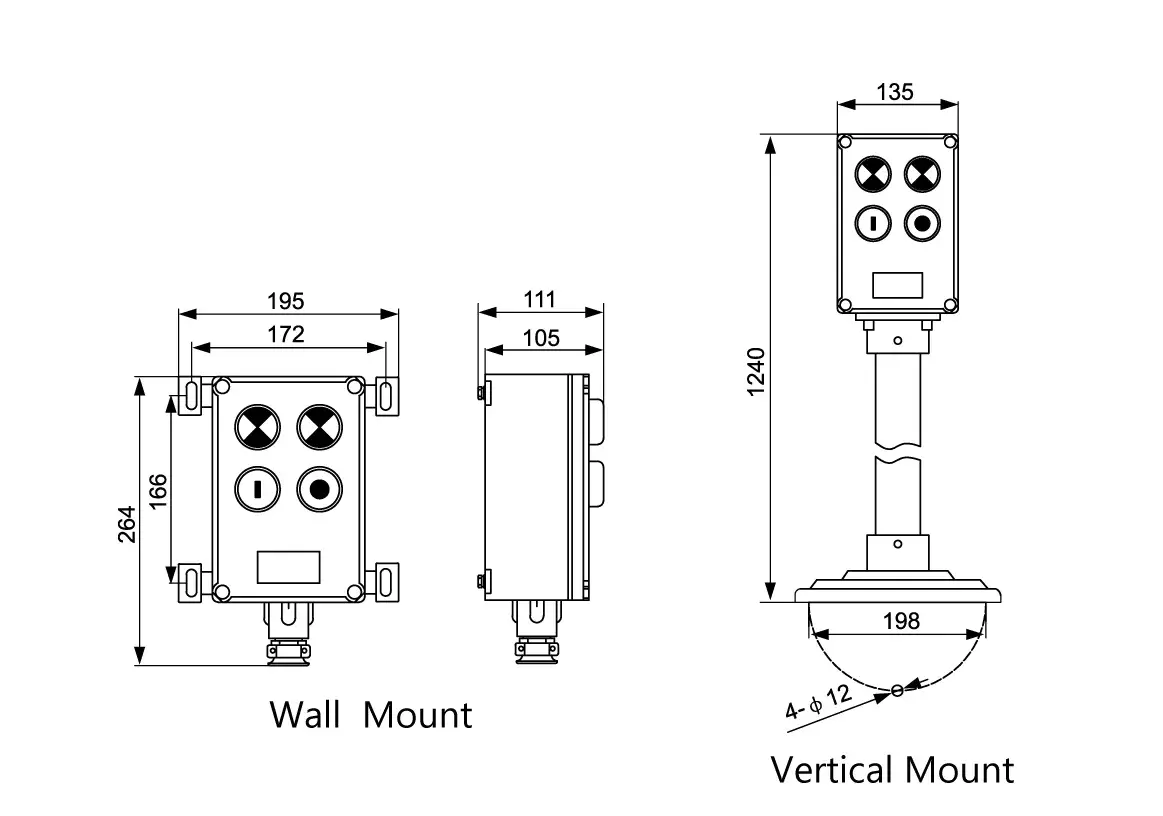

Outline & Mounting

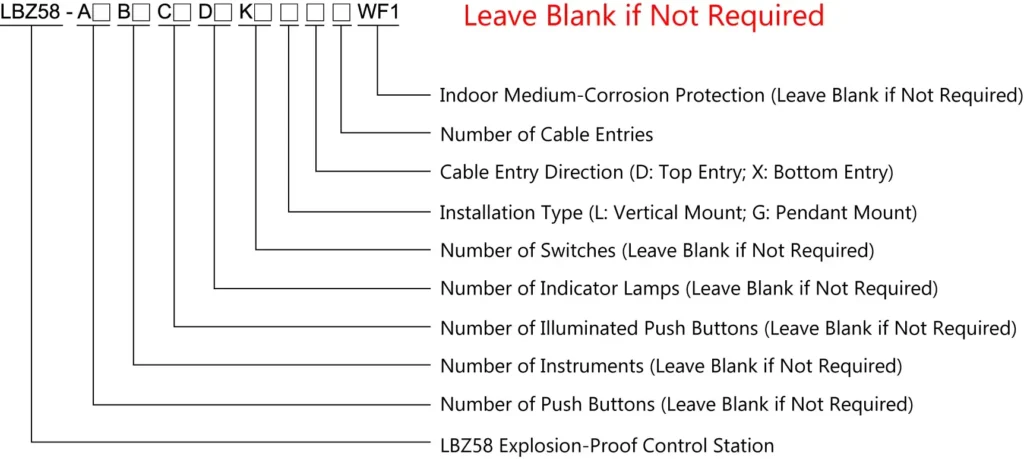

Model Designation
Product Selection Table
