BAT85-M LED Explosion-Proof Light
- Explosion protection: Ex d e mb IIC T5 Gb
- Hazardous area: Zone 1 & Zone 2
- Anti-corrosion grade: WF1 / WF2
- Protection grade: IP66
- Rated power: 20W – 150W
Product Overview
The BAD85-M Series LED explosion-proof light is designed for hazardous gas environments requiring reliable, energy-efficient, and long-term illumination.
Featuring Ex d e mb IIC T5 Gb protection, this series is suitable for Zone 1 and Zone 2 areas and covers IIA, IIB, and IIC gas groups.
Application
-
Petroleum, chemical, metallurgy, and pharmaceutical industries
-
Hazardous locations with explosive gas atmospheres
-
Zone 1 and Zone 2 classified areas
-
Factories, workshops, warehouses, platforms, and outdoor installations
-
Locations with flammable gases and vapors
-
Ambient temperature classes T1 – T6
Technical Parameters
| Item | Specification |
|---|---|
| Explosion-proof marking | Ex d e mb IIC T5 Gb |
| Rated voltage | AC 90–270V, 50/60Hz |
| Light source | LED |
| Luminous efficiency | ≥ 90 lm/W |
| Color temperature | 5500 K |
| Color rendering index | Ra ≥ 70 |
| Power factor | > 0.9 |
| Protection grade | IP65 / IP66 |
| Anti-corrosion grade | WF1 / WF2 |
| Cable entry | G3/4 |
| Applicable cable diameter | Ø10 mm – Ø14 mm |
| Standards | GB 3836.1 / 2 / 3（Aligned with IEC 60079 series） |
Power & Luminous Flux
| Power (W) | Luminous Flux (lm) |
|---|---|
| 30 | 3000 |
| 40 | 3980 |
| 50 | 4800 |
| 60 | 5790 |
| 70 | 6580 |
| 80 | 7530 |
| 100 | 9300 |
| 120 | 12300 |
| 140 | 13900 |
| 150 | 14300 |
Features
-
Aluminum alloy housing with electrostatic powder coating for enhanced corrosion resistance
-
Optimized heat dissipation structure ensuring long LED lifespan
-
High-efficiency LED light source with low energy consumption
-
Scientific optical design providing uniform illumination and reduced glare
-
Wide voltage input range suitable for unstable power supply environments
-
Modular structure for easy installation and maintenance
-
Multiple mounting options to meet diverse site requirements
-
Stable and reliable operation under harsh industrial conditions

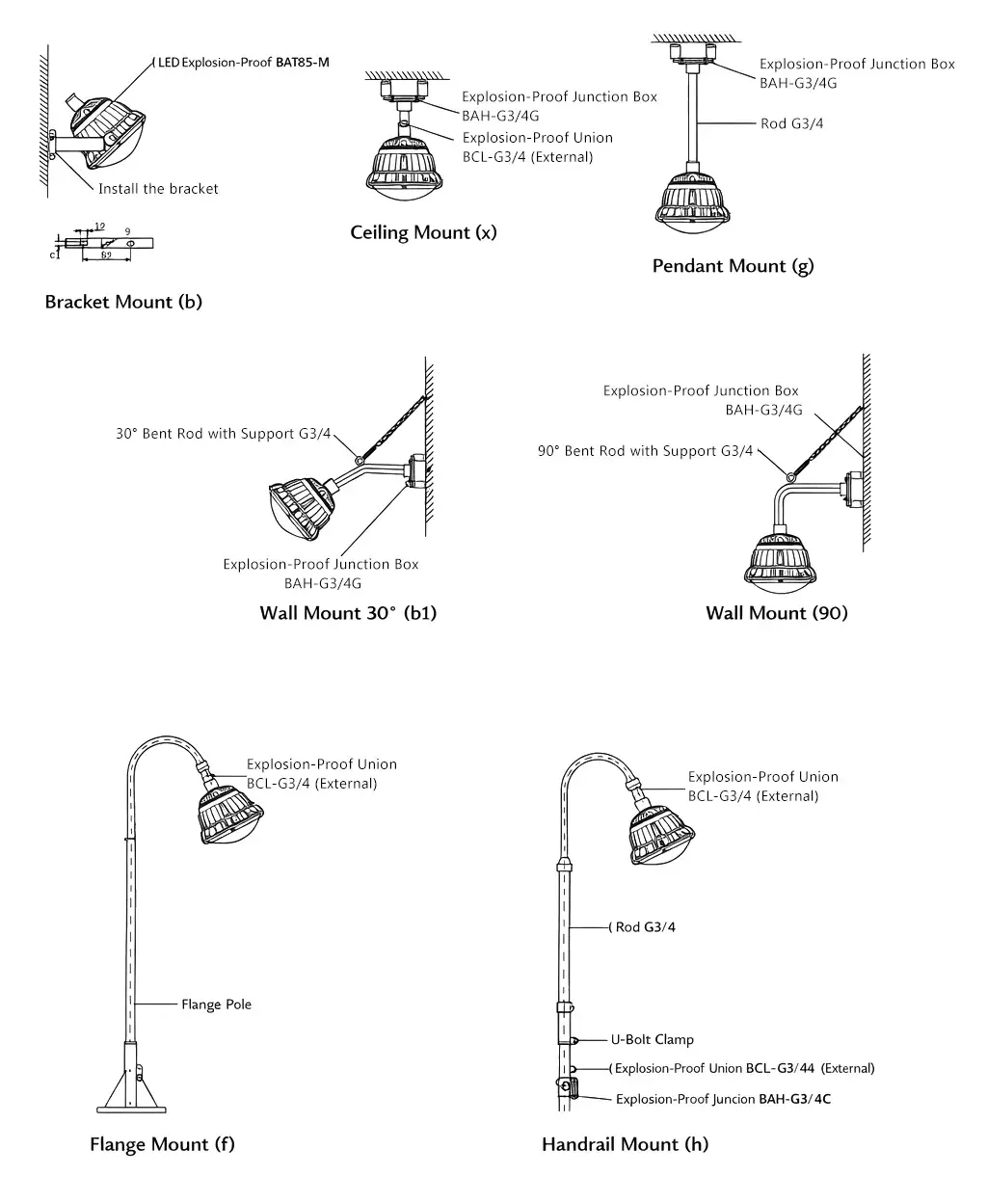

Outline & Mounting
| Mounting Type | Code | Description | Typical Application |
|---|---|---|---|
| Bracket Mount | b | Fixed bracket installation on walls or structures | Workshops, equipment platforms |
| Ceiling Mount | x | Direct ceiling-mounted installation | Indoor plants, enclosed areas |
| Pendant Mount | g | Suspended installation using threaded rod | High ceilings, open workshops |
| Wall Mount 30° | b1 | Angled wall mount at 30° for directional lighting | Corridors, equipment sides |
| Wall Mount 90° | b2 | Vertical wall mount at 90° | Narrow spaces, wall-facing areas |
| Flange Mount | f | Pole or base-mounted installation using flange | Outdoor areas, yard lighting |
| Handrail Mount | h | Mounted on guardrails or handrails | Platforms, offshore facilities |

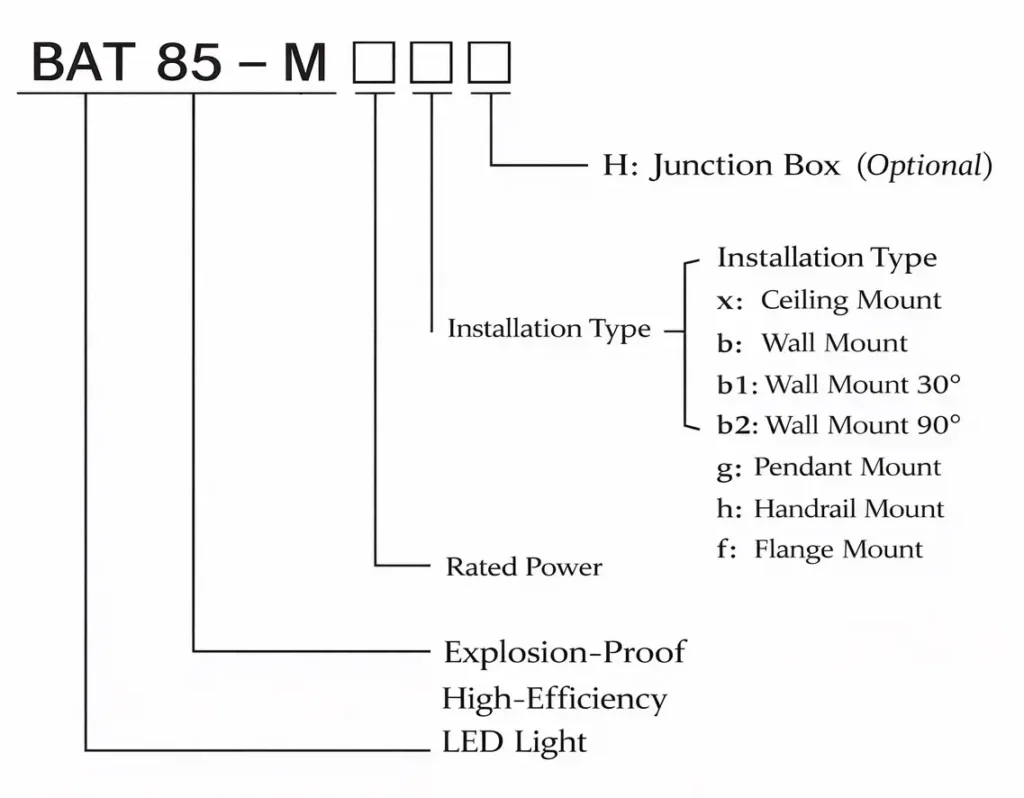

Model Designation
Product Selection Table
| Model | Power (W) | Luminous Flux (lm) |
|---|---|---|
| BAD85-M30 | 30 | 3000 |
| BAD85-M40 | 40 | 3980 |
| BAD85-M50 | 50 | 4800 |
| BAD85-M60 | 60 | 5790 |
| BAD85-M70 | 70 | 6580 |
| BAD85-M80 | 80 | 7530 |
| BAD85-M100 | 100 | 9300 |
| BAD85-M120 | 120 | 12300 |
| BAD85-M140 | 140 | 13900 |
| BAD85-M150 | 150 | 14300 |
- Please specify the product model, rated power, installation method, and explosion-proof marking when placing an order.
Example: 100W high-efficiency LED explosion-proof light with ceiling mounting, model: BAT85-M100x Ex d e mb IIC T5 Gb. -
The product is supplied with the standard configured LED light source as specified.
-
Mounting accessories are not included by default.
Please order the corresponding mounting accessories separately if required. -
The bracket-type installation is suitable for wall mounting, ceiling mounting, and other fixed installation methods.
-
For any special requirements or custom configurations, please specify in advance.
