BAT87 Heavy-duty Explosion-Proof Light
-
Explosion protection: Ex d e mb IIC T5 Gb
-
Hazardous area: Zone 1 & Zone 2
- Anti-corrosion grade: WF1
-
Protection grade: IP66
-
Rated power: 30W / 40W / 50W / 60W
Product Overview
The BAT87 series explosion-proof LED light is specially designed for hazardous industrial environments where high corrosion resistance and long-term reliability are required.Featuring Ex d e mb IIC T5 Gb explosion protection, the BAD87 light is suitable for Zone 1 and Zone 2 explosive gas environments, including IIA, IIB, and IIC gas groups.
Application
-
Oil and gas extraction facilities
-
Chemical and petrochemical plants
-
Offshore platforms and oil tankers
-
Military and heavy industrial hazardous areas
-
High humidity or corrosive environments
-
Energy-saving retrofit projects
Technical Parameters
| Item | Specification |
|---|---|
| Explosion-proof marking | Ex d e mb IIC T5 Gb |
| Rated voltage | AC 220V, 50/60Hz |
| Light source | LED |
| Color temperature | 5500 K |
| Color rendering index | Ra ≥ 70 |
| Luminous efficiency | ≥ 90 lm/W |
| Power factor | > 0.9 |
| Protection grade | IP66 |
| Anti-corrosion grade | WF1 |
| Cable entry | G3/4 |
| Applicable cable diameter | Ø10 – Ø14 mm |
| Standards | GB 3836.1 / 2 / 3（Aligned with IEC 60079 series） |
Power & Luminous Flux
| Power (W) | Luminous Flux (lm) |
|---|---|
| 30 | 3728 |
| 40 | 4513 |
| 50 | 5300 |
| 60 | 6086 |
Features
-
Die-cast aluminum housing with electrostatic powder coating
-
High-strength tempered glass with anti-glare design
-
Pure flameproof structure with double explosion protection
-
Three-chamber design for improved safety and heat dissipation
-
High-efficiency LED modules with >100 lm/W output
-
Wide voltage input with constant-current power supply
-
Superior corrosion resistance for harsh industrial environments
-
Long service life up to 50,000 hours

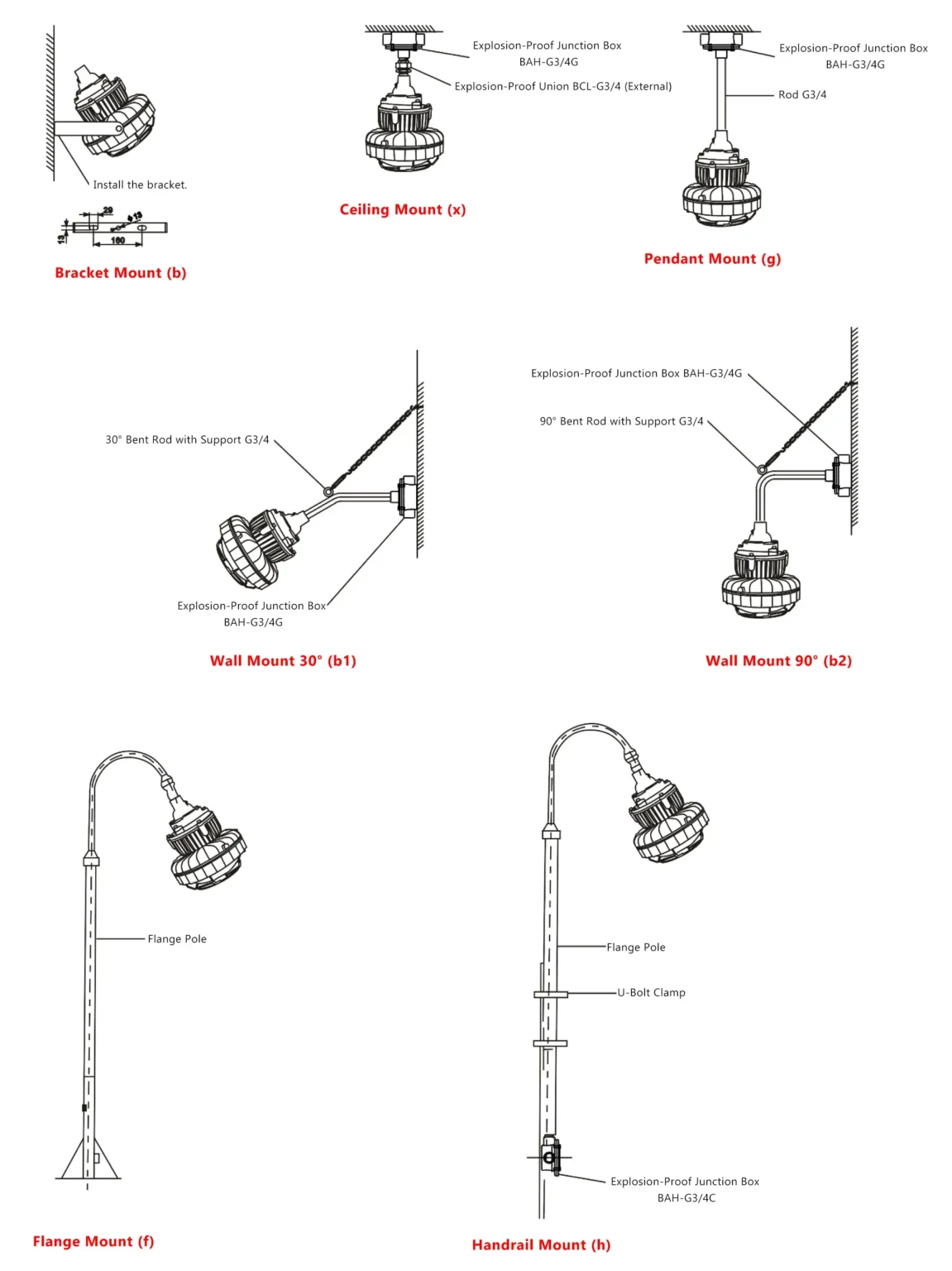

Outline & Mounting
| Mounting Type | Code | Description | Typical Application |
|---|---|---|---|
| Bracket Mount | b | Fixed bracket installation on walls or structures | Workshops, equipment platforms |
| Ceiling Mount | x | Direct ceiling-mounted installation | Indoor plants, enclosed areas |
| Pendant Mount | g | Suspended installation using threaded rod | High ceilings, open workshops |
| Wall Mount 30° | b1 | Angled wall mount at 30° for directional lighting | Corridors, equipment sides |
| Wall Mount 90° | b2 | Vertical wall mount at 90° | Narrow spaces, wall-facing areas |
| Flange Mount | f | Pole or base-mounted installation using flange | Outdoor areas, yard lighting |
| Handrail Mount | h | Mounted on guardrails or handrails | Platforms, offshore facilities |

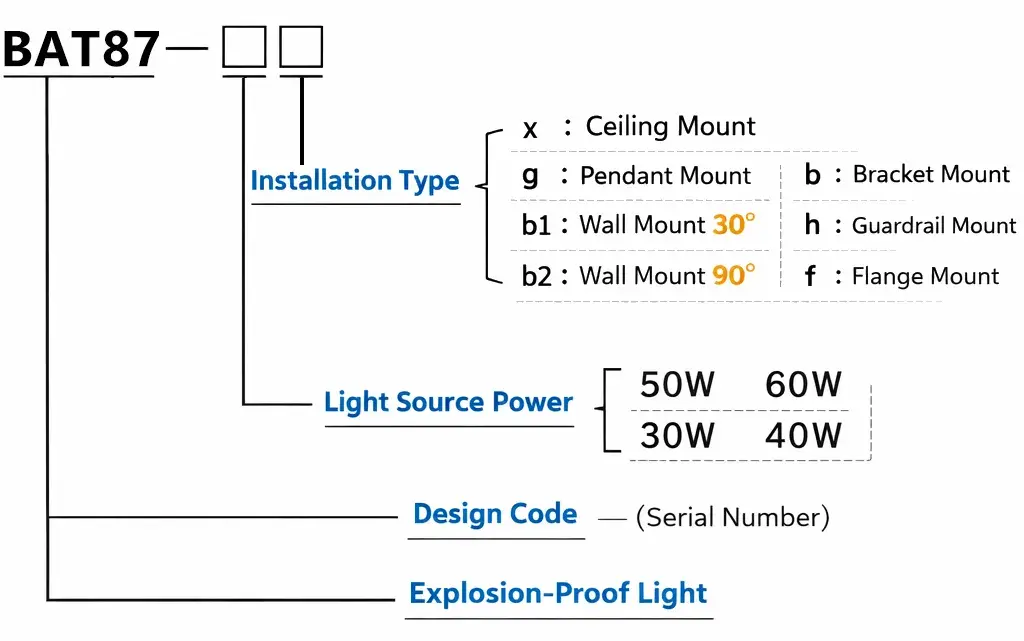

Model Designation
Product Selection Table
| Model | Power (W) | Luminous Flux (lm) |
|---|---|---|
| BAD87-30 | 30 | 3728 |
| BAD87-40 | 40 | 4513 |
| BAD87-50 | 50 | 5300 |
| BAD87-60 | 60 | 6086 |
-
Please specify the product model, rated power, installation method, and explosion-proof marking when placing an order.
Example: 50W explosion-proof LED light with ceiling mounting, model: BAT 87-50x Ex de mb ⅡC T5 Gb. -
The product is supplied with the standard configured LED light source as specified.
-
Mounting accessories are not included by default.
Please order the corresponding mounting accessories separately if required. -
The bracket-type installation is suitable for wall mounting, ceiling mounting, and other fixed installation methods.
-
For any special requirements or custom configurations, please specify in advance.
